Wanjin is an industrial spring manufacturer for OEM and project buyers: compression, die, wave, disc, torsion and extension springs, retaining rings and wire forms, plus heavy duty hot-coiled springs. Cold coiling covers 0.1–10 mm wire; hot coiling covers 14–50 mm bar.
Start with the spring type your assembly needs. Each page explains what the spring does, the inputs we review and how to send a drawing for a quote.
Nineteen product families in total, including circlips, flat and power springs, contact springs and special shapes made from drawings or samples.

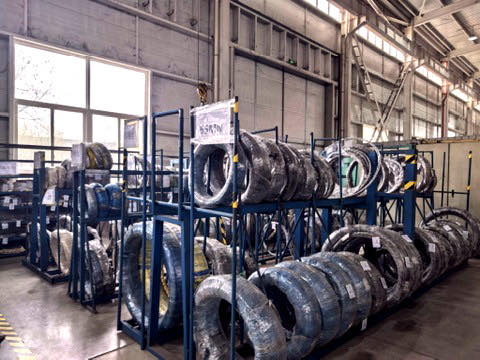

Company materials describe CNC cold coiling, medium-frequency induction hot coiling, finishing and load testing at the Xi'an plant. Process routes and inspection scope are confirmed for each drawing.
Manufacturing ranges are indicative. Feasibility, tolerances and inspection requirements are confirmed for each drawing.
Company materials trace the predecessor to 1982; the current company was registered in April 2018. Current documents should be checked during supplier review.
Enter wire diameter, outside diameter and coils to estimate spring rate, load, Wahl-corrected stress and solid height for compression springs or torque per degree for torsion springs, or check Belleville disc spring load and stress. Free, in mm or inches.
Short answers to the questions we hear most from engineers and sourcing teams. Project specifics are confirmed against your drawing.
A drawing or sample, material, wire or bar diameter, key dimensions and tolerances, the load at a working length (or the spring rate), quantity, finish and any test or certification requirements. Life targets and installation space help us choose the process route.
Both are compression springs. A die spring is wound from rectangular wire for high load and repeated cycling in die pockets, usually with ground ends and a defined maximum travel. A standard compression spring uses round wire and covers a much wider range of sizes, loads and materials.
Use a wave spring when axial space is tight and the load is moderate and well defined, such as bearing preload; it reaches a given load in a shorter working height. A round-wire coil spring is usually simpler and lower cost when there is room or more deflection is needed.
Yes. Disc spring, Belleville washer and Belleville spring are names for the same conical spring washer. It carries high loads over short deflections and can be stacked in series for more travel or in parallel for more load.
Spring rate, or spring constant, is the force needed to deflect a spring by one unit of length, in N/mm or lbf/in. For a round-wire compression spring k = G·d⁴ / (8·D³·Nₐ). The free Wanjin spring rate calculator also estimates load, stress and solid height.
Yes. According to company materials, heavy duty compression springs are hot-coiled from 14–50 mm bar or cold-coiled from wire up to 10 mm. Shot peening, presetting and load testing are planned for the duty cycle, and feasibility is confirmed per drawing.
